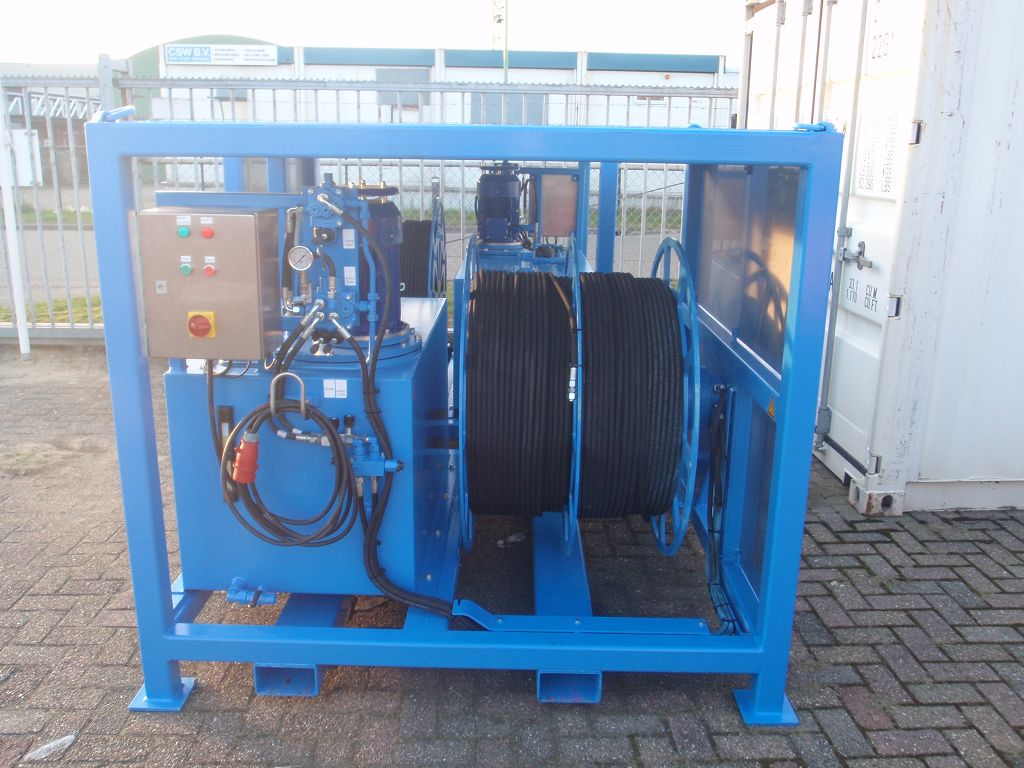

Electrical Powerpack

TMS rents electrical driven power packs which, for example, can be used for the offshore industry. The power packs have a solid frame with lifting lugs positioned at the corners of the frame.

Technical specifications:

  • E-motor : 5,7 kW, 380 V
  • Capacity : 11 l/min
  • Pump pressure : 250 bar
  • Hydraulic oil reservoir : 500 liter
  • Return filter with pollution indication
  • Oil level and oil temperature protection
  • Twofold valves block, manual controlled
  • Hydraulic hose reel including 2 x 160 m hose diameter 1/4” with stainless steel quick connections. Hose reel hydraulic controlled.
  • Dimensions LxBxH : 1,80m x 1,60m x 1,60m
